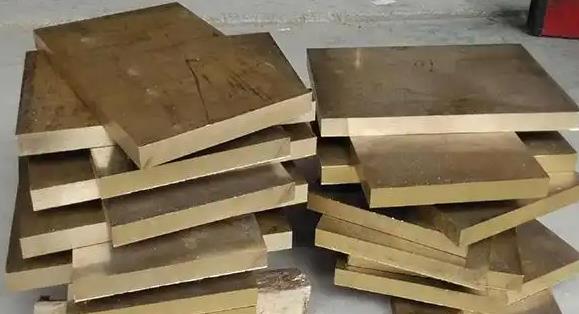

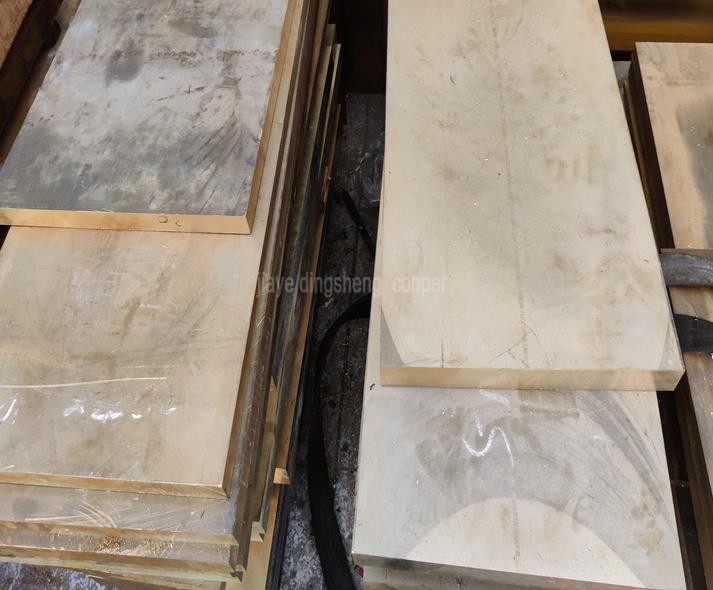

Wear resistant aluminum bronze plate for hardware industry

Tolerance: ±0.05mm

Thickness: 1.0 - 200mm

Width: Customizable as per requirement

Tensile strength: Up to 500 - 600 MPa

Cold-rolled state: Up to 800 - 900 MPa

Brinell hardness range: 120 - 240 HB

Aluminum bronze sheet is a high-quality aluminum bronze alloy. Its main component is copper, supplemented by 4.0 - 6.0% of aluminum, and it also contains trace amounts of iron, zinc, manganese, silicon and other elements. This alloy is widely used in various industrial fields due to its outstanding mechanical properties and corrosion resistance.

Durability: The hard phase formed by aluminum and iron elements can effectively resist frictional wear. It has a low friction coefficient and is suitable for manufacturing high-friction components such as bearings and gears.

High strength: Tensile strength ≥ 588 MPa, capable of withstanding high loads and high impact environments;

Typical applications:

‌ Ships: Propellers, seawater pump valves, marine fasteners.

‌ Machinery: Heavy machine guide plates, wear-resistant liners for mining machinery.

‌ Chemicals: Acid-resistant pump bodies, heat exchangers.
