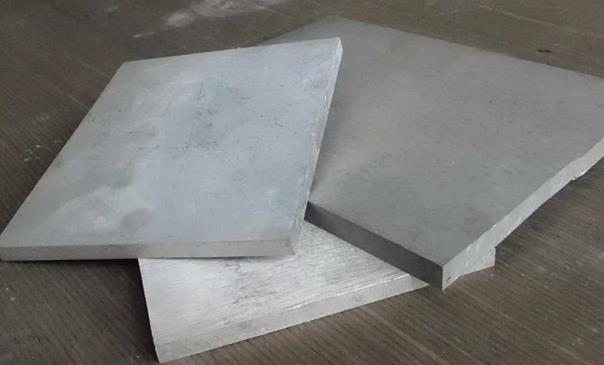

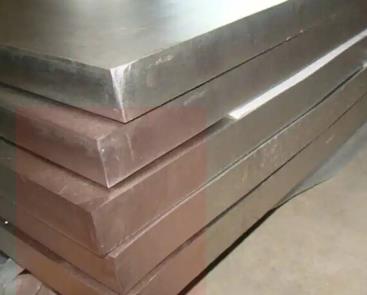

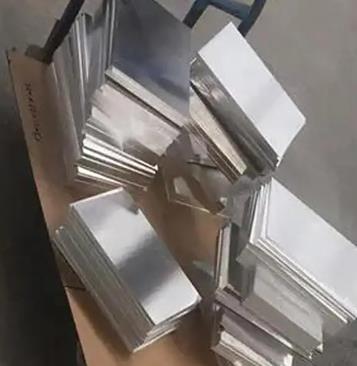

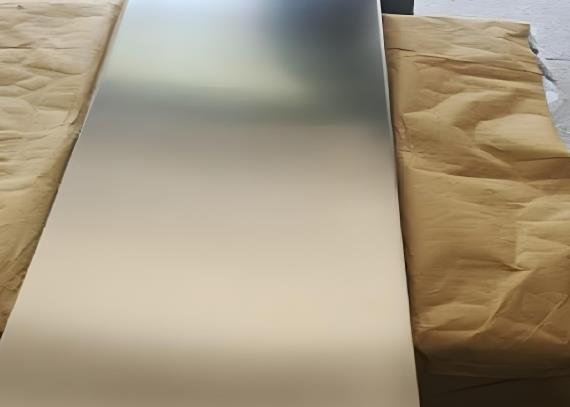

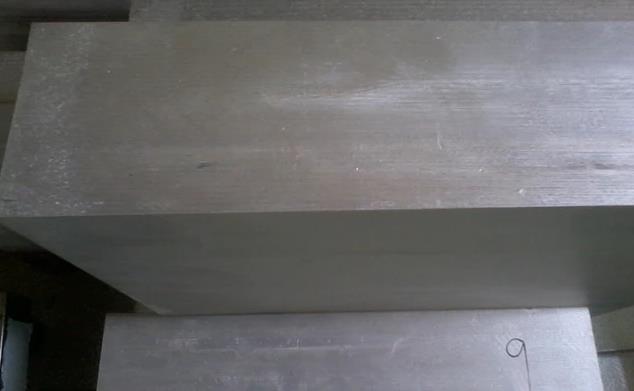

B19 nickel copper plate for hardware processing

Width: Maximum 450mm

Length: Maximum 630mm

Thickness: Maximum 160mm

Allowance: ±0.1

Hardness: 150~230HVHB

Conductivity: Standard

Custom processing: Yes

Softening temperature: 935℃

Type: White copper sheet

Material Characteristics

Outstanding corrosion resistance: Resistant to seawater and acidic media corrosion. In a salt spray environment, its service life is more than three times that of ordinary brass.

Balance between high strength and plasticity: Soft state is easy to shape, while hard state can withstand high loads.

Excellent thermal stability: Working temperature range is -50℃ to 300℃, with a low thermal expansion coefficient.

Anti-biological contamination: Reduces the adhesion of marine microorganisms, lowering maintenance costs.

The application of B19 nickel white copper plate (ordinary white copper) in the field of hardware processing mainly lies in its excellent corrosion resistance, mechanical properties and machinability.

Machinability

B19 copper supports hot pressing and cold pressing processing and is suitable for manufacturing precision hardware parts. For example, its good plasticity makes it easier to process complex structural components such as metal meshes and instrument parts.

Typical applications:

‌Hardware tools‌: Used for manufacturing corrosion-resistant tools or accessories

‌Precision parts‌: Such as internal structural components of instruments, hardware mold parts

‌Decorative hardware‌: Some handicrafts or decorative items utilize its corrosion-resistant properties
