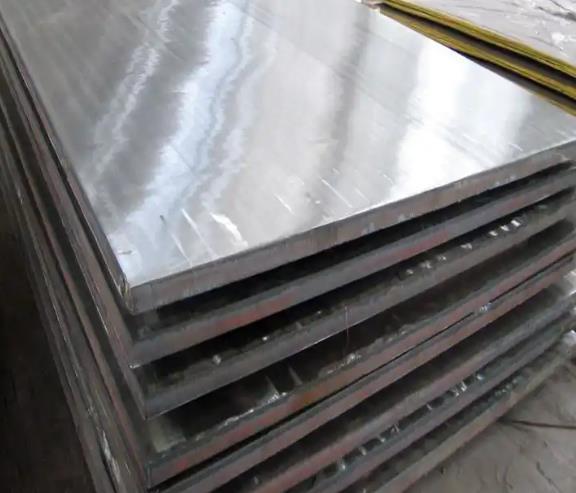

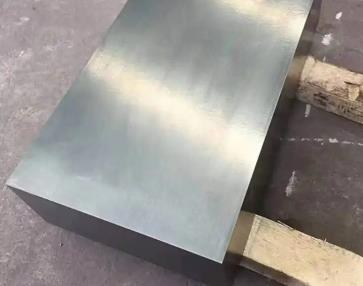

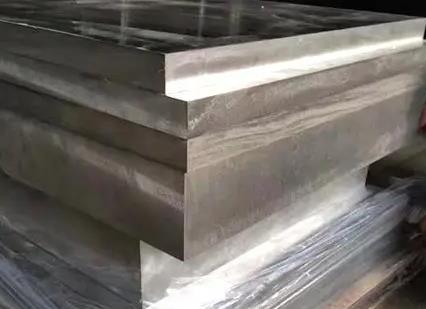

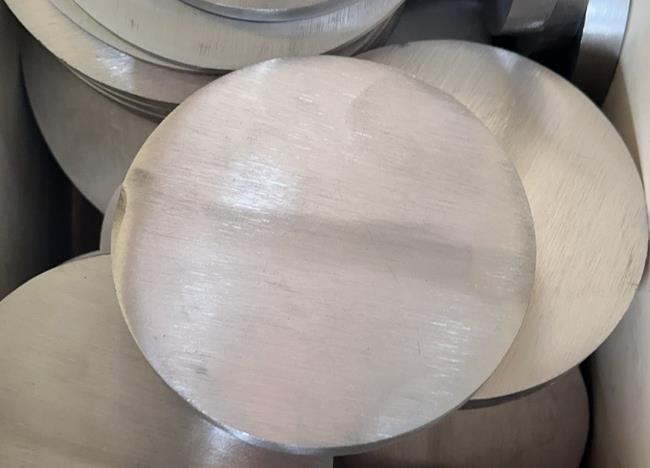

High temperature resistant B19 high nickel copper plate easy to process

Diameter: 8 - 150mm

Length: 530 - 3600mm

Tolerance: + - 0.03

Nickel + Cobalt (Ni + Co): 18.0% - 20.0%

Temperature range: 980 - 1030℃

Tensile strength can reach 295 MPa

Compressive strength: 400 MPa

Delivery time: Stock available

Fusion casting temperature: 1330 - 1350℃

Annealing temperature: 780 - 810℃

High-temperature resistance characteristics

The high-temperature resistance of the high-nickel B19 white copper plate is mainly manifested in the heat processing process. The heat processing temperature range of the high-temperature resistant B19 white copper plate is 980 - 1030℃, and the casting temperature is 1280 - 1300℃. Within this range, it can maintain good forming performance.

Mechanical performance characteristics

Under high temperatures (such as during heat processing), the tensile strength of the high-temperature resistant B19 white copper plate can reach 295 MPa, and the elongation rate is ≥ 20%. It still maintains high mechanical strength and plasticity, making it suitable for complex forming processes.

Excellent machinability of high-temperature resistant B19 white copper plate: The high-temperature resistant B19 white copper plate is easy to process both at high and low temperatures. It can be shaped and formed through traditional metal processing techniques such as forging, rolling, and cutting. This provides great convenience for the manufacturing process. However, it should be noted that under certain precise processing requirements, additional technologies and equipment may be needed for handling.
