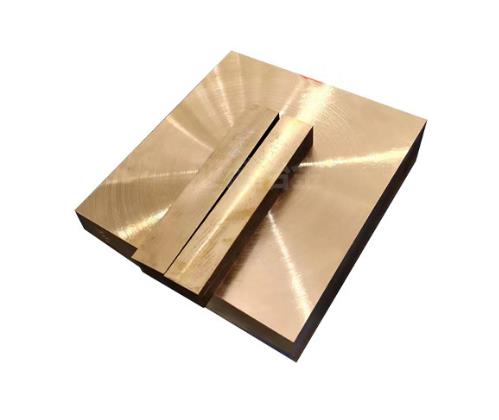

C17200 high toughness beryllium bronze copper plate block

C17200 high toughness beryllium bronze copper plate block, high thermal conductivity and wear-resistant beryllium bronze block

Aluminum content: 0.01%

Magnesium content: 0.01%

Nickel content: 0.01%

Code: C17200

Name: Environmentally friendly beryllium copper alloy

Lead content: 0.01%

Softening temperature: 930°C

Titanium content: 0.02%

Copper content: remaining amount

Rare earth content: ≥ 0.01%

Tin content: 0.01%

Zinc content: 0.01%

Hardness: HV330-390HB

Impurity content: 0.01%

Transportation method: Express delivery, logistics, door-to-door delivery

Melting temperature: 870°C

Heat conductivity rate W/(mC): 105

Solidification temperature: 980°C

Usage: Mold inserts, mechanical manufacturing

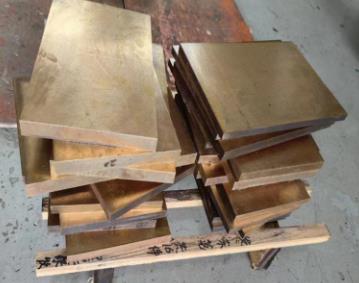

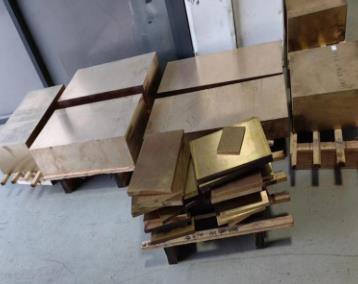

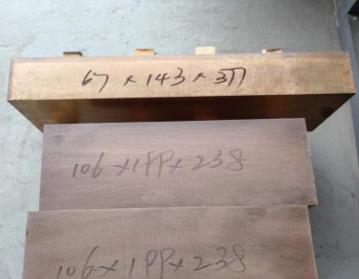

Product details

Cutting is smooth, the surface is flat and smooth without burrs

The surface is smooth, the color is uniform, the glossiness is good

Good corrosion resistance, excellent corrosion resistance and oxidation resistance

Characteristics and Applications

Feature:

1. High thermal conductivity, 2.3 times higher than steel, excellent cooling performance, can shorten the injection molding cycle time. Good heat dissipation effect effectively reduces product deformation and shrinkage degree, controls the shrinkage rate after injection molding, improves dimensional stability and increases production efficiency.

2. High corrosion resistance, especially suitable for PVC product molds.

3. High hardness and toughness. As an insert, when used with steel and aluminum work molds, it can enable the mold to perform better and extend the service life of the mold.

4. Excellent polishing performance, can achieve a surface with high precision mirror finish and complex patterns.

5. Good anti-sticking performance, easy to weld with other metals, easy for mechanical processing and no additional heat treatment is required.

Application: C17200 high toughness beryllium bronze block is used for mold cores, insert parts of injection molds, mold cavities, corrosion-resistant molds, injection heads of press machines, top rods and pins of gate openings, punches and other mold accessories, thermal flow channel system accessories, stretching molds, die-casting molds, casting molds, as well as corrosion-resistant parts such as bearings and worm gears.

Advantages: High strength, high hardness, high conductivity, high thermal conductivity, high temperature resistance and low temperature resistance, non-magnetic, no sparks during impact, etc. C17200 high toughness beryllium bronze block is suitable for insert parts, core parts, die-casting punches, heat flow channel cooling systems, heat dissipation nozzles, integral cavities of blow molding molds, automotive molds, wear blocks, etc. for plastic injection molding molds.
