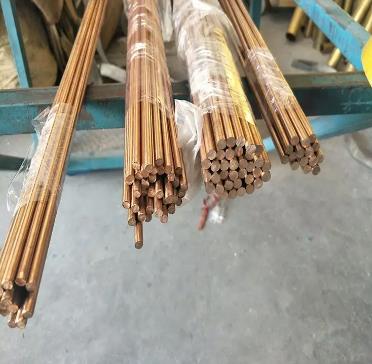

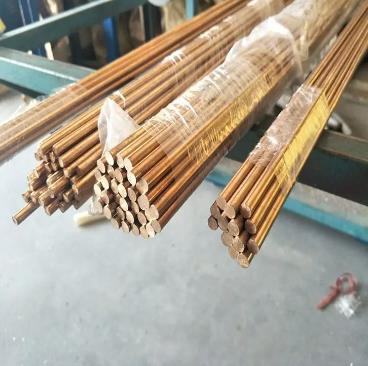

Mold pin beryllium copper rod C17200 high strength beryllium bronze rod

Usage: Mold inserts, resistance welding electrodes, injection molds, bathroom molds

Hardness: 36-42HRC

Conductivity: ≥50% ACS

Custom processing is available

Softening temperature: 870~980℃

Density: 8.85g/cm³

Heat conductivity: ≥225% W/M, K20°

Packaging: Standard packaging

Grade: C1720

What is beryllium copper? (A copper alloy with beryllium as the main alloying element) Generally, beryllium bronze contains 1.7 to 2.5% beryllium and a small amount of nickel, chromium, titanium, etc.

Smooth cutting

Precise craftsmanship, smooth surface without burrs, sleek and shiny, quality assured, long service life

The typical application of beryllium bronze processing materials is as current-carrying springs, connectors, contacts, fastening springs, leaf springs and spiral springs, diaphragms, bellows and lead frame in electronic devices.

Product Specifications: Customization available

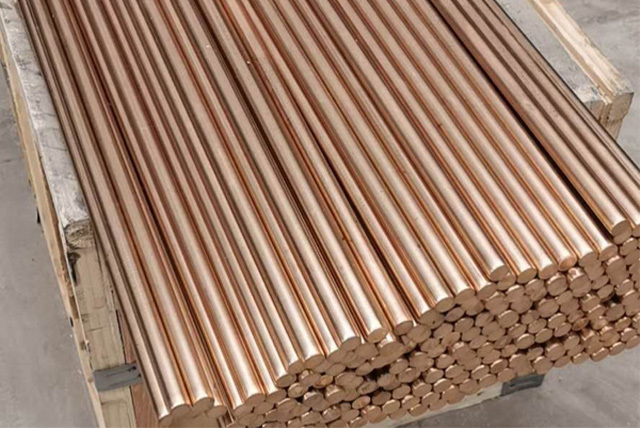

Product Packaging: Wooden crates, wooden supports, cardboard boxes

Product Features: Smooth surface, strong toughness, corrosion-resistant, resistant to high pressure

Product Applications: Metallurgy, electronic communication, automotive manufacturing, precision molds and other fields

Good machinability

It has excellent machinability and can be processed into various shapes and sizes of parts.

Good thermal conductivity

It has excellent thermal conductivity and can effectively transfer heat, improving the heat dissipation efficiency of the equipment.

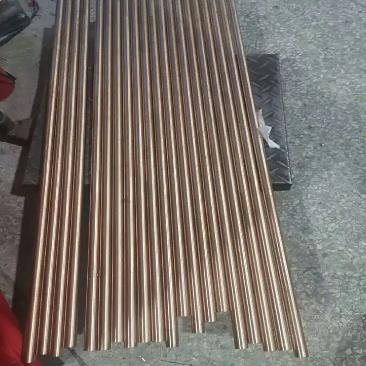

Mold pin beryllium copper rod

Characteristics of Jin Guang Metal's Beryllium Copper Products:

1. High thermal conductivity, 2.3 times higher than that of steel. Excellent cooling performance, which can shorten the injection molding cycle time. Good heat dissipation effect, effectively reducing product deformation and shrinkage degree, controlling the shrinkage rate after injection molding, improving dimensional stability, and increasing production efficiency.

2. Excellent corrosion resistance, particularly suitable for molds used in polyoxyethylene (PVC) products;

3. High hardness, wear resistance and toughness. When used as an inlay component in conjunction with the steel and aluminum materials of the mold, it enables the mold to achieve high efficiency and extends the service life of the mold.

4. Excellent polishing performance is achieved, enabling the creation of highly precise mirror-like surfaces and complex-shaped patterns.

5. Excellent anti-adhesion performance, easy to be welded with other metals, easy for mechanical processing and no additional heat treatment is required.

Beryllium copper alloy is applied to mold cores, insert parts of injection molds, mold cavities, corrosion-resistant molds, injection heads of press machines, top rods and pin needles of gate openings, punch parts of molds, heat flow channel system accessories, stretching molds, casting molds, die-casting molds, as well as corrosion-resistant and wear-resistant parts such as bearings and worm gears.
