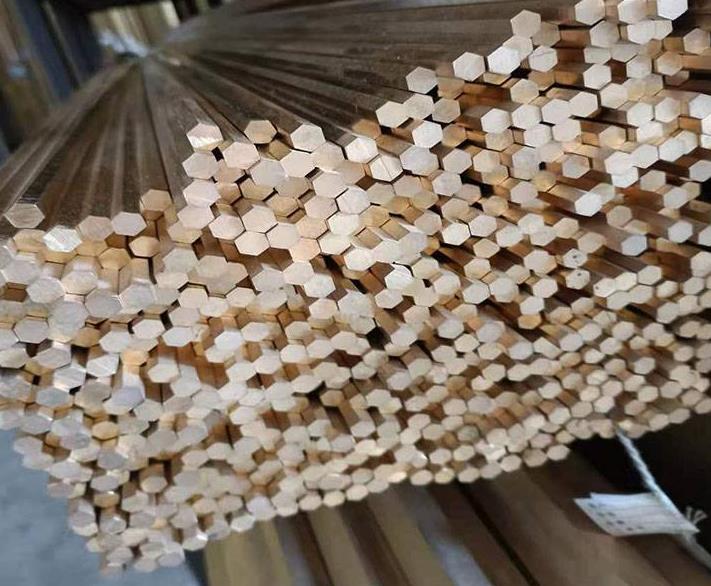

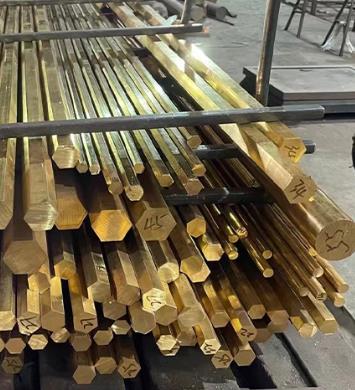

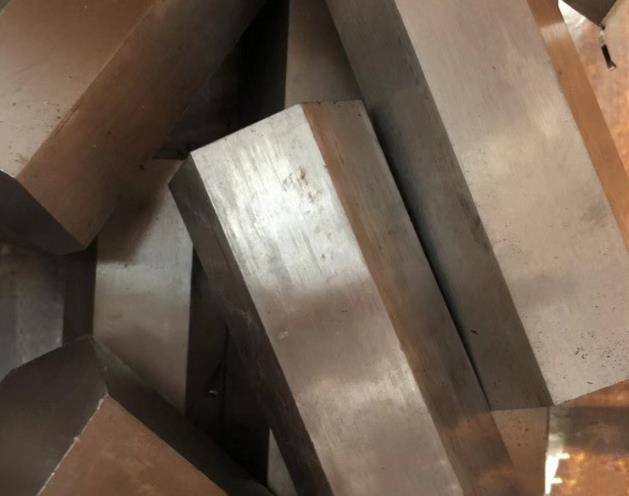

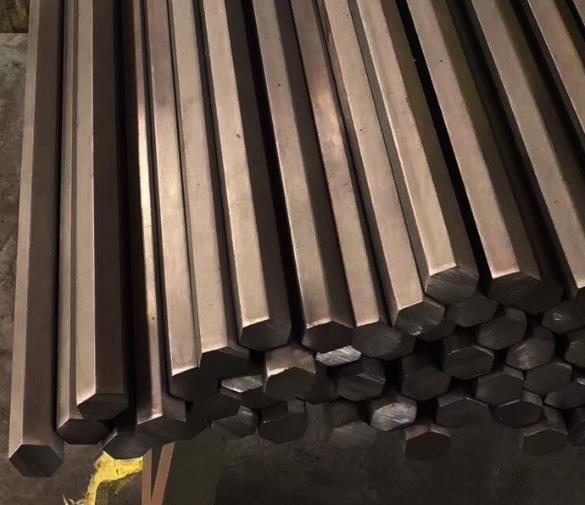

High-strength and highly wear-resistant C17510 beryllium copper hexagonal bar

Specification: Diameter 0.8 - 350mm, in stock regularly

Process: Extrusion, continuous casting

Molding Process: Die casting

Surface Treatment Process: Polishing

Application: Hardware, electronics, machinery, molds, home decoration, industrial manufacturing, etc.

The wear-resistant C17510 beryllium copper hexagonal bar has high strength and plasticity, and can well withstand cold and hot pressure processing. However, it has a tendency to corrode and crack.

Applications: used in small hardware, daily necessities, small springs, screws, rivets and mechanical parts.

Hexagonal bar precision cutting with sides of 65, 67, 70, 75, 80, 95 mm.

Wear-resistant C17510 beryllium copper hexagonal bar is smooth, fine, flat, without sand holes, no pockmarks, no air holes, no cracks, no oxidation. It meets the tolerance standards and has the characteristics of high precision, high strength, corrosion resistance, good toughness.

Wear-resistant C17510 beryllium copper hexagonal bar is mainly used for explosion-proof tools, various molds, bearings, bearing shells, shaft sleeves, gears and various electrodes, etc. The oxides and dust of beryllium are harmful to the human body. During production and use, protection measures should be taken. C17510 beryllium copper bar is a kind of alloy with good comprehensive mechanical, physical and chemical properties. After quenching and tempering, it has high strength, elasticity, fatigue resistance and heat resistance. At the same time, beryllium copper also has high electrical conductivity, thermal conductivity, cold resistance and non-magnetism. It does not produce sparks when struck and is easy to weld and brazing. It is excellent in seawater and fresh water. The corrosion rate of beryllium copper alloy in seawater is: (1.1 - 1.4) × 10-2 mm/year. The corrosion depth is: (10.9 - 13.8) × 10-3 mm/year. After corrosion, the strength and elongation remain unchanged, so it can be maintained for more than 40 years in seawater. C17510 beryllium copper bar is the material for the structure of submarine cable repeaters. In sulfuric acid medium: in a solution with a concentration less than 80% (at room temperature), the annual corrosion depth is 0.0012 - 0.1175 mm, and the corrosion rate is slightly faster when the concentration is greater than 80%.
