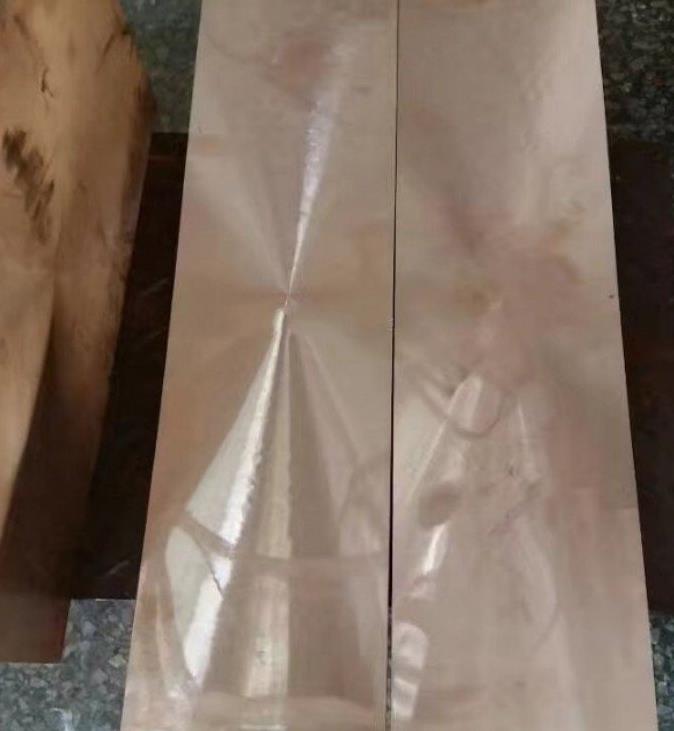

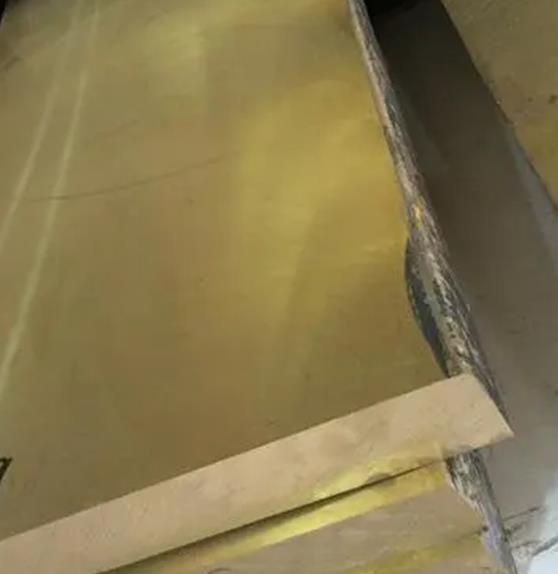

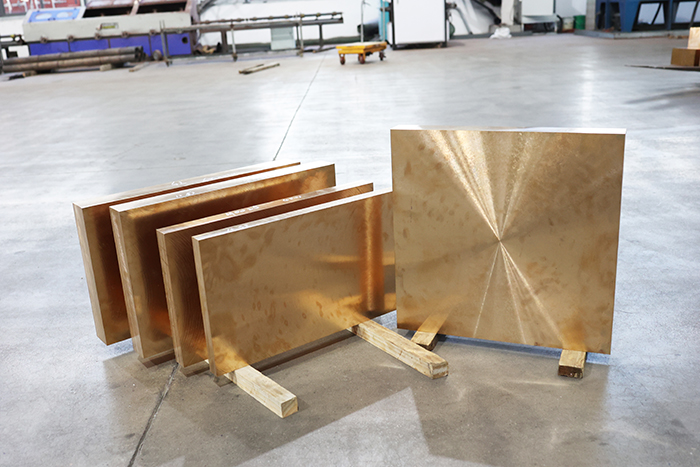

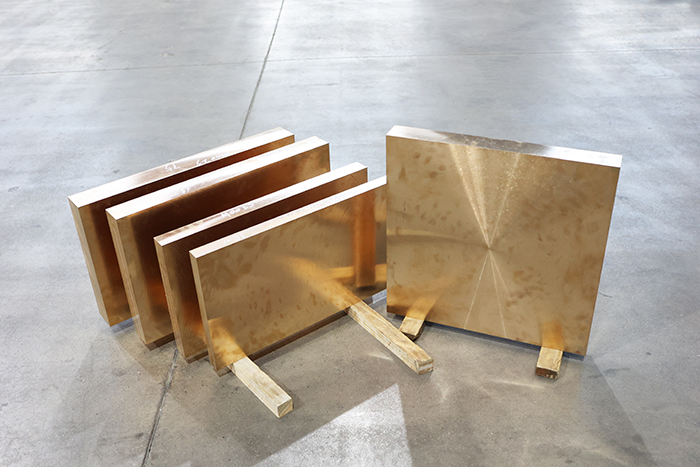

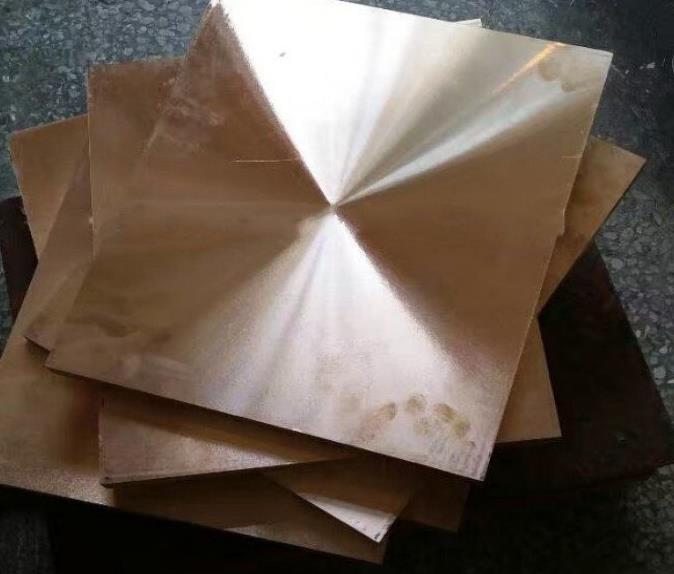

Insert heat dissipation C17510 beryllium bronze plate environmentally friendly

Product specifications: 0.5mm - 200mm, customizable

Conductivity: 18 IACS%

Yield strength: 1035 Mpa

Tensile strength: 1105 Mpa

Product surface: polished

Density: 8.7

Sales method: direct sales, wholesale, retail

Product packaging: waterproof packaging

High thermal conductivity: The insert heat dissipation C17510 beryllium bronze plate has excellent thermal conductivity and can effectively dissipate heat. It is suitable for scenarios requiring heat dissipation (such as electronic components, mold cooling systems).

Good processing performance: The insert heat dissipation C17510 beryllium bronze plate can be processed into complex-shaped parts, and the surface accuracy after polishing is high.

The high copper content of the C17510 beryllium bronze plate for insert heat dissipation ensures its excellent electrical conductivity and thermal conductivity. Its thermal conductivity reaches up to 105 W/m·K at 20℃, which means it can quickly transfer heat and effectively dissipate it.

The C17510 beryllium bronze plate for heat dissipation is used in various micro-motor brushes, switches, relays, connectors, temperature controllers and other spring parts that require high strength, high elasticity, high hardness and high wear resistance. As the requirements for the reliability and service life of products become increasingly higher, the demand for beryllium copper will also increase significantly.

The insert heat dissipation C17510 beryllium bronze plate integrates excellent mechanical properties, physical properties and chemical properties. After heat treatment (solution treatment and aging treatment), it has the same high strength limit, elastic limit, yield limit and fatigue limit as special steel, while also having high electrical conductivity, thermal conductivity, high hardness, corrosion resistance, wear resistance, good casting performance, non-magnetism and spark-free impact characteristics. It is widely used in mold manufacturing, machinery, electronics and other industries.

The insert heat dissipation C17510 beryllium bronze plate has no sand holes or pores, uniform hardness, dense structure, high strength, good thermal conductivity, good electrical conductivity, corrosion resistance, wear resistance, good processing performance, stable performance under high pressure conditions, no magnetism, excellent polishing performance and good anti-adhesion performance.
