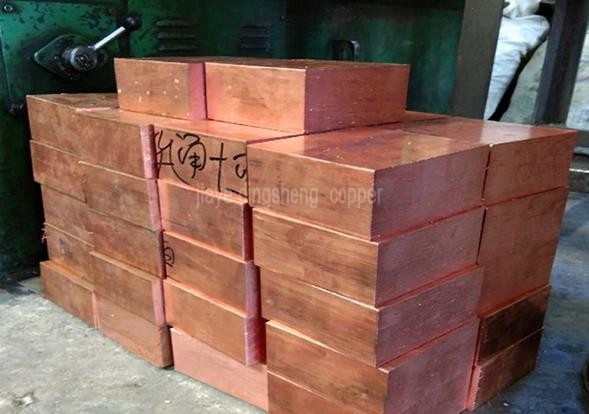

High wear resistant C18000 nickel chromium copper plate for injection molding

Width: 100 - 620mm

Length: 400 - 700mm

Height: 10 - 200mm

Tolerance: + - 0.5 HRB: 75-85

Nickel content: 2.5%

Durable and resistant to corrosion

The high-maintenance C18000 nickel-chromium copper plate has excellent processing performance, good corrosion resistance, excellent coating oxidation effect, and excellent welding properties.

High precision of the product

The thickness tolerance of the plate surface is small (generally positive tolerance), the hardness meets the standard (HB above 95 degrees), and the toughness is high. It does not deform after processing.

Specific applications

The high-maintenance C18000 nickel-chromium copper plate has excellent electrical conductivity, thermal conductivity, ductility, and corrosion resistance. It is used in the electrical industry, generators, grounding busbars, mold industry, etc.

Process treatment

The product surface is smooth without burrs. Better products give you more peace of mind. High-quality material selection

The surface is smooth and well-finished, with even cutting. It has a wide range of applications. Support customization

Non-standard products can be customized according to user requirements based on drawings or samples.

Quality control

Each product is inspected by specialized equipment to ensure its quality and standards.

The high wear-resistant C18000 nickel-chromium-copper plate has excellent wear resistance. The elements such as nickel, chromium, and silicon in its alloy composition enhance the hardness of the material's surface and its anti-wear ability. Here is a detailed analysis:

Wear resistance performance

The high wear resistance C18000 nickel-chromium copper plate can achieve a hardness of HRB 75-85 after aging treatment, with an ultimate tensile strength of 590-830 MPa (≥ 900 MPa after aging). It possesses high wear resistance and fatigue resistance, and is suitable for high-load friction scenarios, such as welding electrodes and mold components.

Performance enhancement mechanism

The addition of silicon in the high-montmorillonite C18000 nickel-chromium-copper plate significantly enhances the hardness and wear resistance of the material. Chromium strengthens the corrosion resistance, while nickel optimizes the structure. The combined effect of these three elements enables C18000 to maintain stable performance in friction and wear environments.

Typical application scenarios:

‌Welding field‌: As an electrode material for resistance welding, it reduces electrode wear and improves welding efficiency.

Mold manufacturing: Components such as cores and ejector pins for hot pressing molds and die-casting molds, which extend the service life.

Mechanical components: Suitable for high-speed rotating mechanical parts, high-temperature transmission devices, etc., in environments with high wear and tear.
