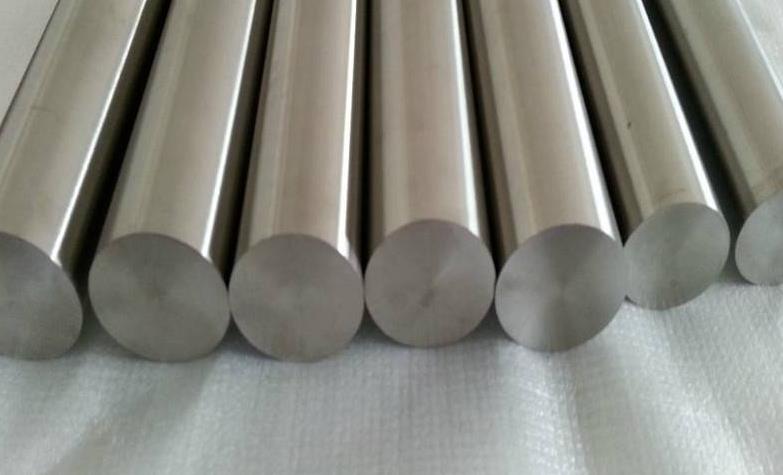

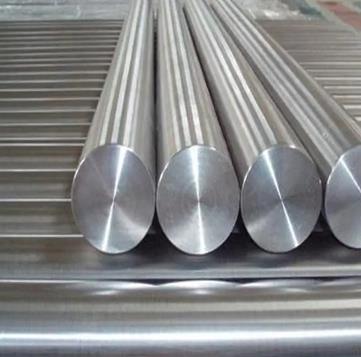

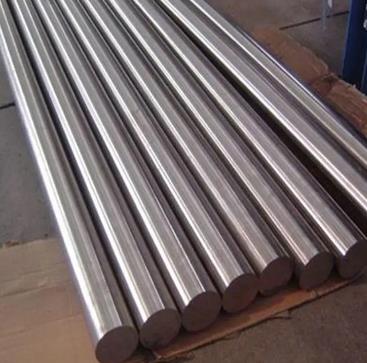

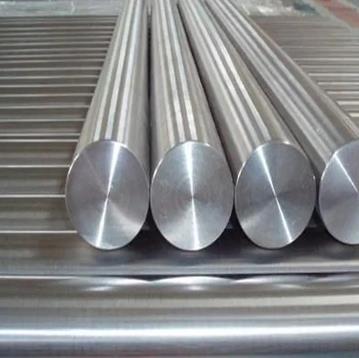

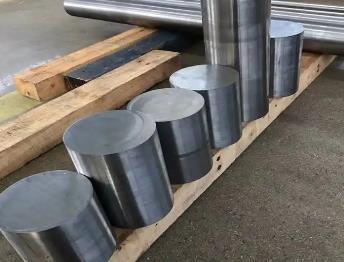

C72900 copper nickel alloy round bar for high-temperature and high-pressure environments

Width: Maximum 400mm

Length: Maximum 560mm

Thickness: Maximum 130mm

Allowance: ±0.3

Working temperature can reach 200°C

Product surface description: Smooth and flat surface

Sales: Available for immediate purchase

Packaging: Woven bag, wooden box, wooden tray

Characteristics: Resistant to high temperatures

Resistant to high pressure

Good mechanical properties Long service life

High-temperature stability

The working temperature can reach 200°C. Above this temperature, other materials (such as beryllium copper) need to be selected. Its thermal expansion coefficient is 9.1×10⁻⁶ /°C (68°F to 572°F), and it is suitable for precision industrial applications.

Organizational structure:

The C72900 copper-nickel-tin alloy rod is strengthened through metastable decomposition (Spinodal Decomposition), forming a nanoscale amplitude decomposition structure (the coherent precipitated phases of Ni and Sn in the Cu-based solid solution), significantly enhancing the strength and hardness of the C72900 copper-nickel-tin alloy rod while maintaining good toughness.

Application fields

Electronic industry: 5G communication connectors, chip test sockets, high-speed backplane terminals

Aerospace: Engine elastic sealing ring, aircraft electromagnetic shielding component

Automobile manufacturing: High-voltage relays' spring plates and sensors' precise contacts for new energy vehicles

Medical devices: Endoscope spring arm, ultrasonic probe conductive element
